Excalidraw Export to PDF: 4 Practical Methods (2026)

by Rachel Jones 2026-10-10

Key Takeaways:

1 Pick the method by what comes next — browser print for one-off shares, PNG conversion (via tools like PDNob) for image-based PDFs, the Obsidian plugin for paper-size control, and OCR if you need to edit text inside a flat PDF.
2 Always keep the source .excalidraw file. Once exported to PNG, SVG, or PDF, text becomes part of a flat picture — OCR can recover the text, but arrows, connectors, and hand-drawn shapes can't be rebuilt.
3 The Obsidian Excalidraw plugin handles paper size and page fitting for wide boards. Excalidraw Extras is the companion package that adds the PDF export menu.
4 OCR makes text editable inside an image-based PDF, but it doesn't recreate the original drawing. A label can be corrected in the PDF; rearranging a flowchart should be done back in Excalidraw.
5 Not everything survives the round trip. Hyperlinks flatten with PNG conversion, and PDF output strips the embedded scene data — don't treat a printed PDF as a backup of your source.

For a quick Excalidraw export to PDF, save your drawing as an SVG, open it in Chrome, and choose Save as PDF from the print dialog. You can also convert a PNG export into a PDF or use the Obsidian Excalidraw plugin's PDF export tools. If you need to edit text inside an image-based PDF afterward, add an OCR step.

Your choice depends on what you want to share: a simple diagram, a large board spread across pages, or a document with editable text. The methods below explain each route and its limits.

Part 1. How to Export Excalidraw to PDF Using Browser Print to PDF

Part 2. Workaround for Excalidraw Export to PDF by Converting Images

Part 3. Export an Excalidraw File as PDF with the Obsidian Plugin

Part 4. How to Make an Excalidraw Export Editable with PDNob OCR

FAQs

Part 1. How to Export Excalidraw to PDF Using Browser Print to PDF

This browser workflow starts with an SVG export. SVG is a vector format, which makes it a useful starting point for diagrams containing lines, shapes, and labels. Opening the exported file also gives you a document-only view to print.

Here is how to convert Excalidraw to PDF using Chrome on Windows or Mac:

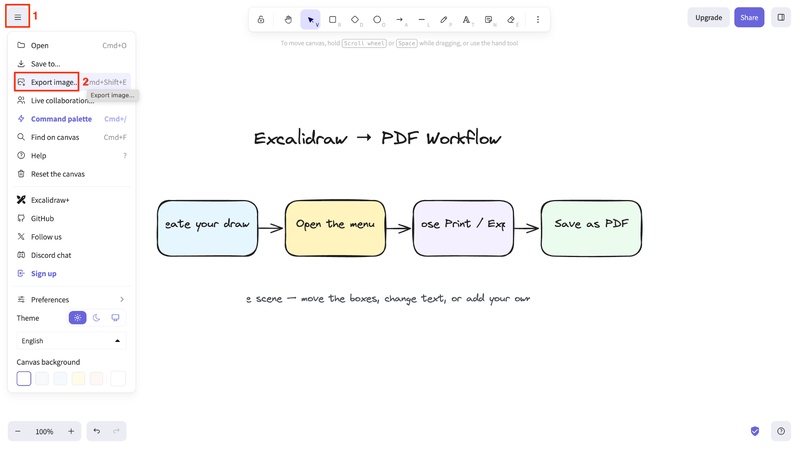

Open your drawing in Excalidraw and, from the main menu, choose Export image.

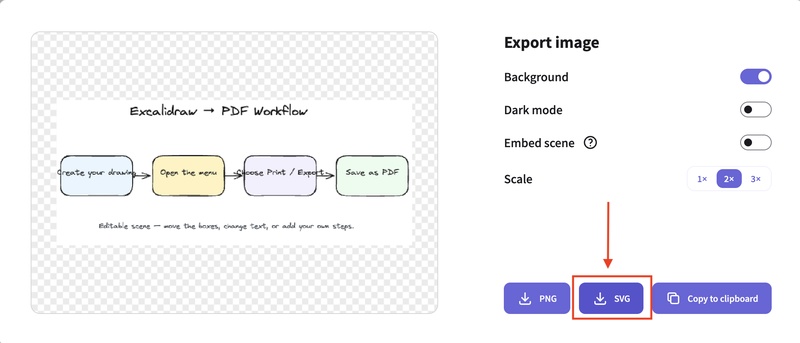

Check that the export preview contains everything you need and click SVG to download the drawing.

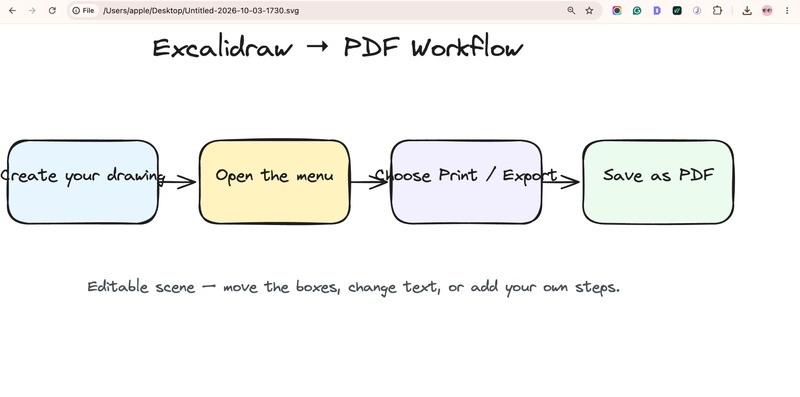

Open the downloaded SVG in Chrome. You can drag the file into a new browser tab.

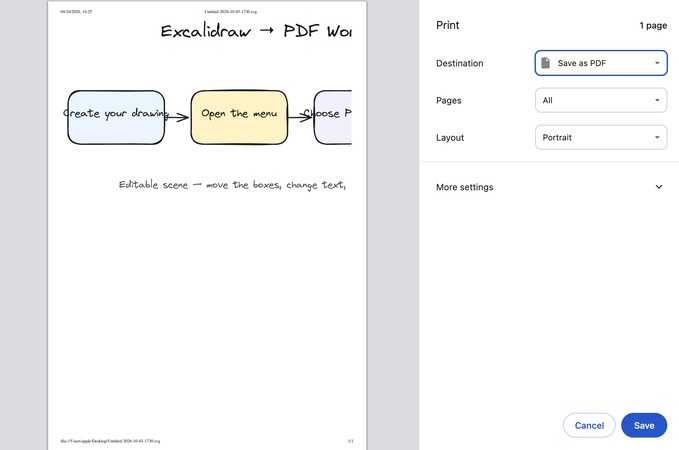

Press Ctrl + P on Windows or Command + P on Mac. Set Destination to Save as PDF. Choose your paper size and orientation, then adjust the scale until the diagram fits in the preview.

Click Save, choose a filename and location, and open the resulting PDF.

For a wide flowchart, try landscape orientation first. If fitting everything onto one page makes the labels too small, use the Obsidian method.

Check the final file at its intended reading size. A successful save doesn't tell you whether a long label was clipped or a small annotation became unreadable.

Part 2. Workaround for Excalidraw Export to PDF by Converting Images

PNG conversion works well when you want a PDF that shows the drawing as an image. It's also the starting point for the OCR workflow. The trade-off is that the PNG's text and shapes become part of a flat picture.

You can create the PDF with PDNob PDF Editor, which supports desktop editing and cloud workflows. The following steps use its desktop app.

In Excalidraw, choose Export image from the main menu.

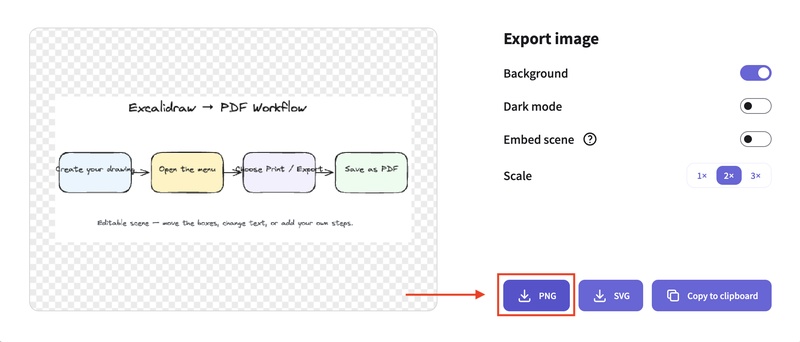

Use a light background and dark labels for a document you plan to print. Increase Scale if small text looks unclear, then click PNG.

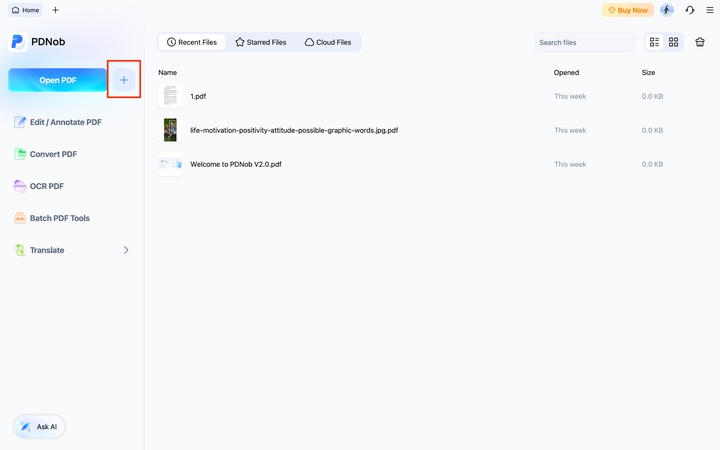

Open PDNob's desktop app and click the + button in its sidebar.

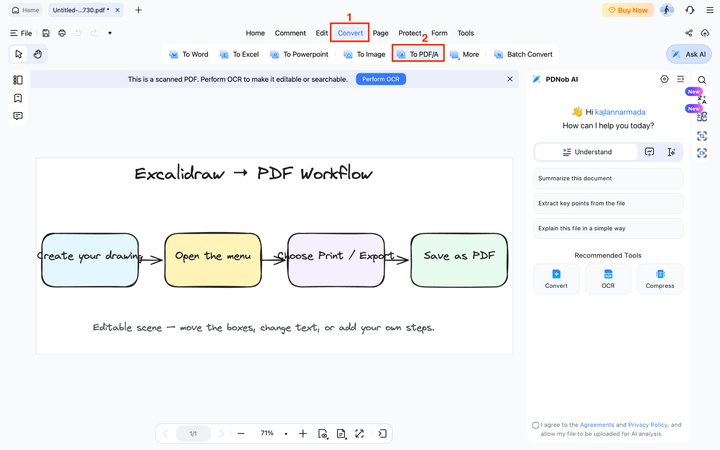

Click the Export button in the top toolbar, choose PDF as the format, and save the file to your preferred location.

Open the PDF and zoom in on the smallest labels. If they're already blurry in the PNG, exporting a larger image from Excalidraw is a better fix than enlarging the PDF afterward.

Part 3. Export an Excalidraw File as PDF with the Obsidian Plugin

If you already use Obsidian Excalidraw, its PDF export controls give you more control over paper size and page fitting. Use the drawing's export dialog for this workflow in Obsidian's desktop app. Set up the Obsidian Excalidraw plugin.

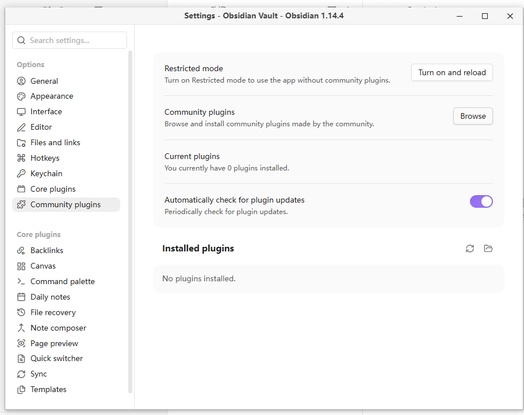

Open an Obsidian vault and go to Settings > Community plugins. Turn on community plugins if prompted.

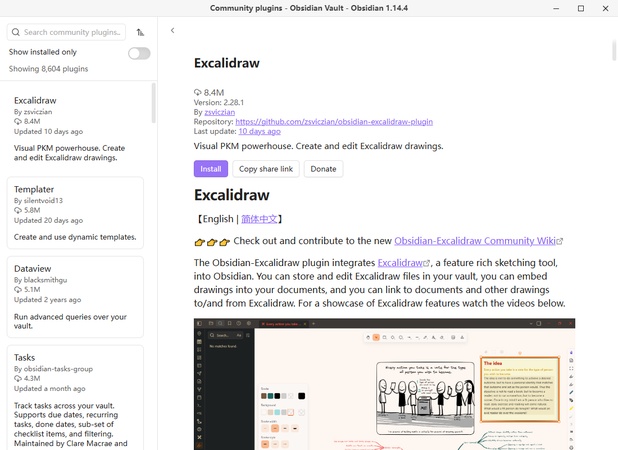

Click Browse, search for Excalidraw, and install and enable the plugin by Zsolt Viczian.

Install and enable Excalidraw Extras when prompted. It extends the canvas menu with the PDF export controls.

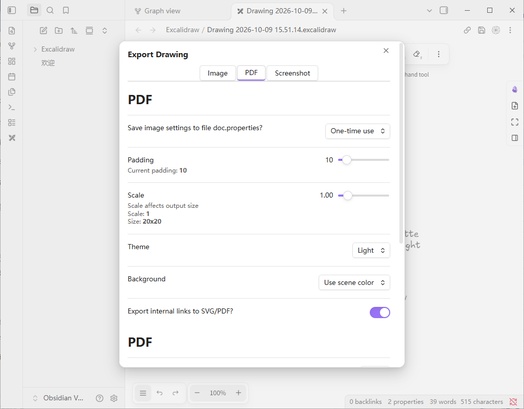

Open your Excalidraw drawing in Obsidian, click the three-dot menu in the canvas's upper-right corner, and choose Export to PDF. Set the page size and orientation, then save the file.

Review every page, especially where connectors cross page boundaries. Multipage fitting helps keep text readable, but a page break can still split a diagram at an awkward point.

If the PDF option is missing, check that you're using the desktop app, update the Excalidraw plugin, and follow any prompt to enable Excalidraw Extras.

Part 4. How to Make an Excalidraw Export Editable with PDNob OCR

PDNob PDF Editor is a lightweight, budget-friendly PDF tool built for quick response and AI high-precision OCR. Cold-starting in 0.25s, recognizing paragraph text at 89.88% accuracy, and selling as a $64.99 one-time lifetime license, PDNob skips the monthly subscription that ships with most enterprise PDF editors. Best for individual professionals and small teams who need accurate OCR across desktop and cloud workflows.

An image-based PDF can look finished while offering no way to select or change its labels. Optical character recognition (OCR) identifies text inside that image so a PDF editor can work with the recognized words.

For an Excalidraw export to editable PDF, pair a clear PNG export with PDNob's OCR tools:

Export your diagram from Excalidraw as a PNG. Use readable text, strong contrast, and enough resolution for the smallest labels.
Convert the PNG into a PDF using the steps in Part 2, then open that PDF in PDNob.

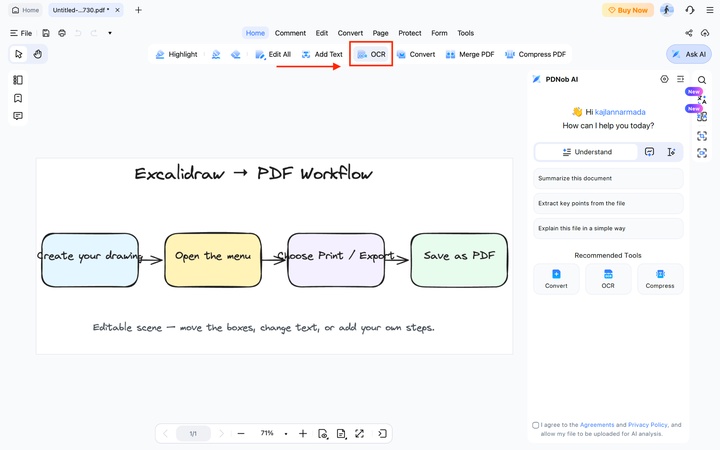

Click OCR and, if prompted, download the OCR module.

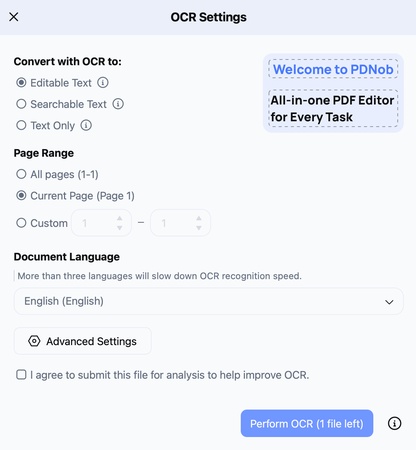

Choose Convert to Editable Text, then click Perform OCR. PDNob also offers Convert to Searchable Text in Image, which keeps the page image while adding searchable text.

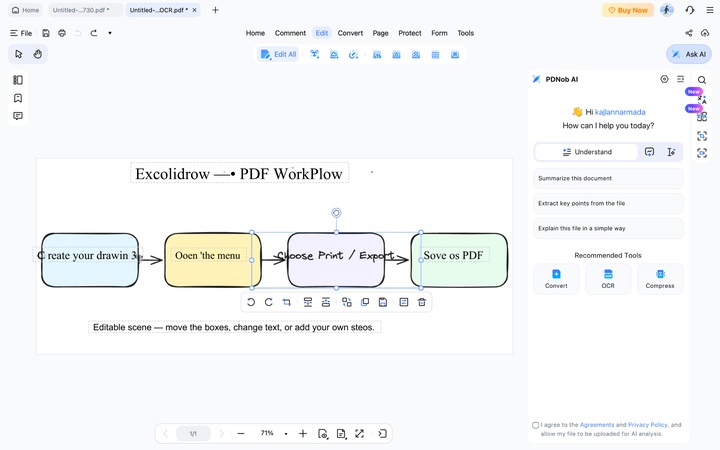

After processing, select Edit, double-click the recognized text, and make your corrections. Check the font, spacing, and placement of every changed label.

Save the PDF, reopen it, and confirm that the text edits appear correctly.

OCR only rewrites the recognized text—it doesn't rebuild arrows, connectors, or hand-drawn shapes as native Excalidraw objects. Keep the source drawing for structural changes.

Conclusion

The right Excalidraw export-to-PDF method depends on what you need next. Use SVG and browser printing for a straightforward PDF, PNG conversion for an image-based document, or the Obsidian plugin for page-fitting controls. When you need to revise text in a PNG-based PDF, use PDNob OCR and check the recognized words before sharing. Keep your original drawing alongside the finished PDF.

FAQs

Q1. What file format does Excalidraw use?

A1: Excalidraw's native drawing format is .excalidraw, a JSON-based file. It stores drawing elements, canvas settings, and image data used by the scene. These Excalidraw files preserve the drawing structure so you can reopen and modify individual elements. PNG, SVG, and PDF are different export formats.

Q2. Can I convert an Excalidraw file by renaming it to .pdf?

A2: No, renaming the extension doesn't convert the file's contents. An Excalidraw file contains drawing data, while a PDF needs a different document structure. Open the drawing in a compatible app and export or convert it properly.

Q3. Do I need an Excalidraw account for the browser method?

A3: No, you can use the free Excalidraw web app without an account, export your drawing as SVG, and save it as a PDF through Chrome.

Q4. Can I reopen an exported PNG or SVG as an editable drawing?

A4: Yes—if you enabled Embed scene during export, Excalidraw stores scene data inside the PNG or SVG so you can reopen and edit the drawing. PDF output doesn't preserve that data, so keep the original exported image.

Q5. Will links in my drawing stay clickable after PNG-to-PDF conversion?

A5: No, since PNG conversion turns your drawing into an image, it doesn't carry over interactive hyperlinks. Add the links afterward in a PDF editor such as PDF-XChange Editor, then open the saved document and test each one before sharing it.
